Description
P/N: RL-SMA-SF-SMA-1000

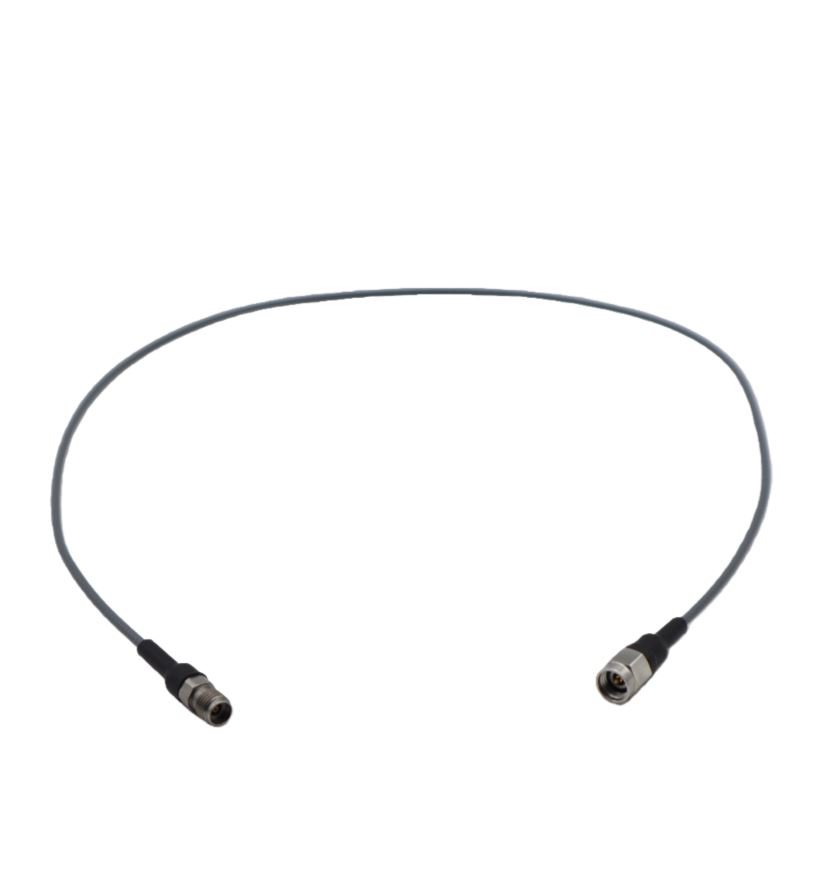

The SMA Male to Male Superflex Cable Assembly is designed for demanding RF and microwave applications, supporting a frequency range from DC to 26.5 GHz. Featuring a superflexible construction, this cable assembly offers exceptional flexibility for tight installations while maintaining high signal integrity and low insertion loss. Its durable design ensures reliable performance in harsh environments, making it ideal for communication, radar, and test equipment applications.
| Technical Data | |
|---|---|
| Impedance | 50Ω |
| Frequency range | DC26.5G |
| Temperature Range | -55 °C ~ +85°C |
| Durability (Matings) | ≧500 |
| Material | |
| Connector 1 | SMA male connector |
| Body | Stainless steel(Su303), passivated |
| Inner contact | Beryllium-Copper, gold-plated |
| Insulator | PTFE |
| Connector 2 | SMA male connector |
| Body | Stainless steel(Su303), passivated |
| Inner contact | Beryllium-Copper, gold-plated |
| Insulator | PTFE |
| Cable | Superflex |
Test Plot
Additional information
| Frequency | 18G |
|---|---|
| VSWR | 1.20 |
| Material | Stainless steel |
