Description
P/N: RL-SMP-female

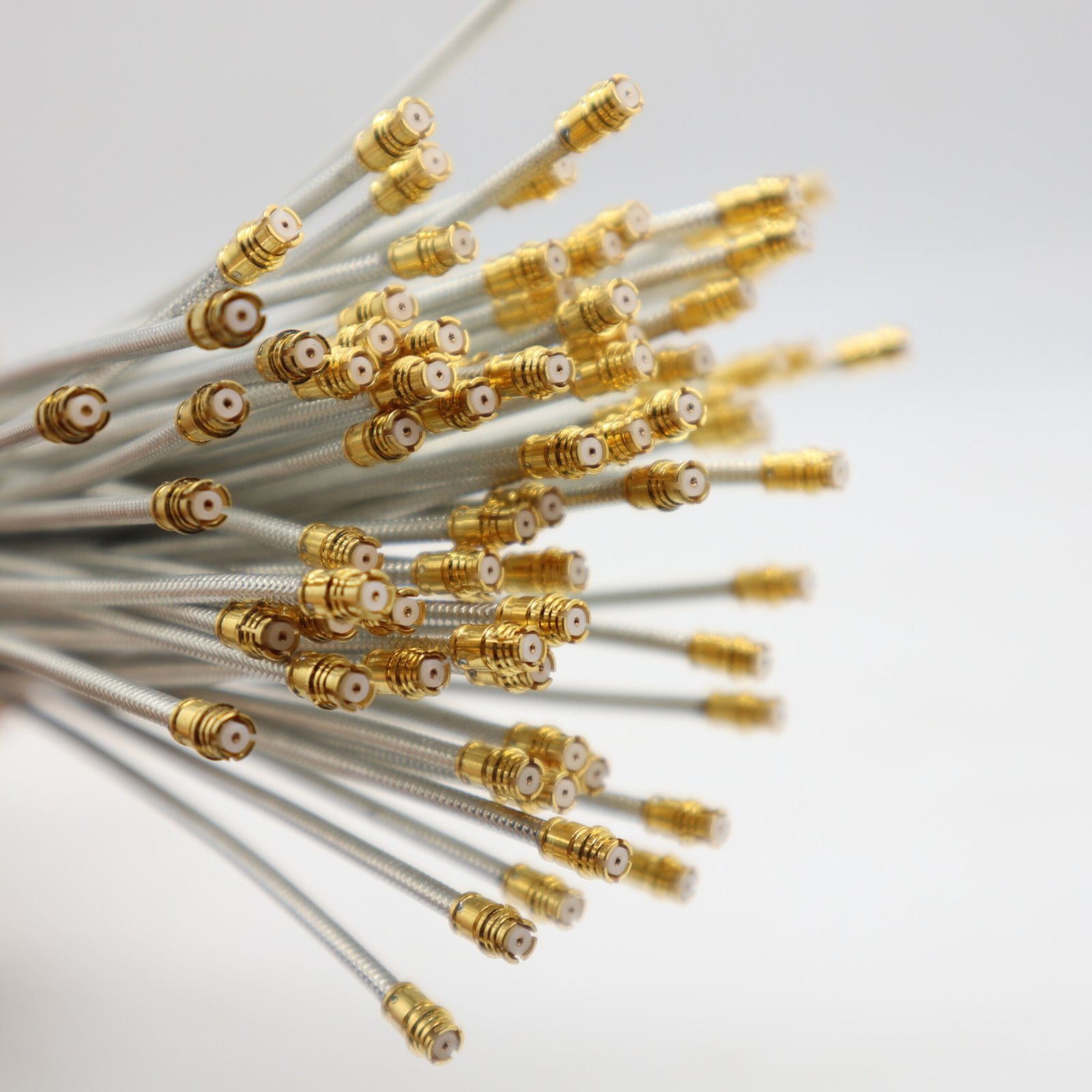

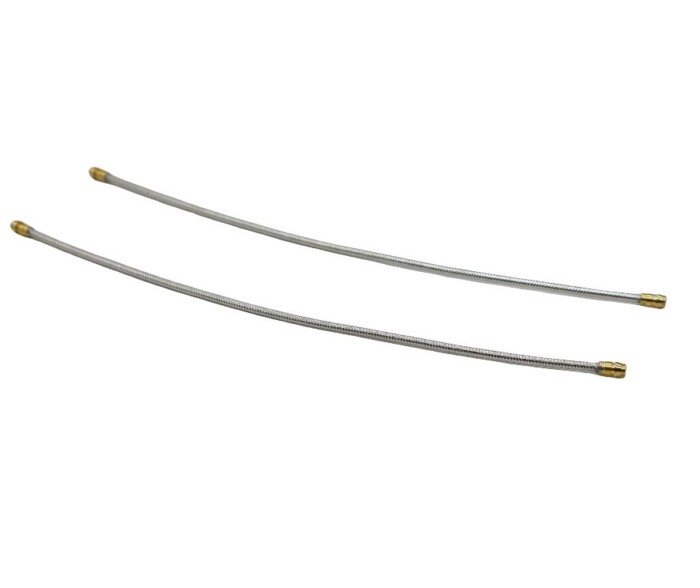

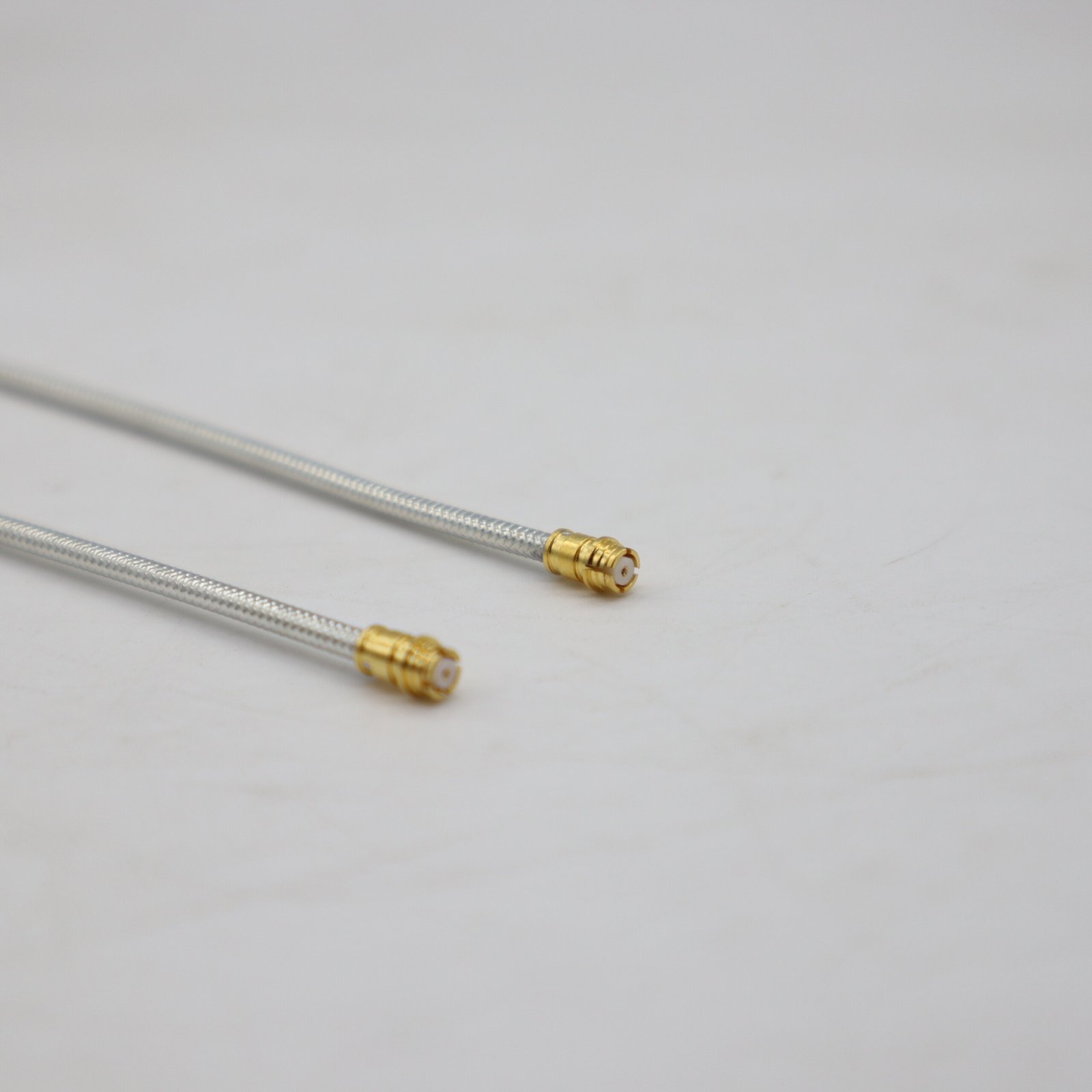

The SMP Female Cable Assembly is designed for precision RF applications, supporting frequencies from DC to 12 GHz. This compact cable assembly provides excellent signal integrity and low insertion loss, ensuring reliable performance in communication, test equipment, and radar systems. With durable construction and precise connectors, it is perfect for high-frequency systems requiring minimal signal degradation.
| Technical Data | |
|---|---|
| Impedance | 50Ω |
| Frequency range | DC 12G |
| Temperature Range | -55 °C ~ +85°C |
| Durability (Matings) | ≧500 |
| Material | |
| Connector 1 | SMP female connector |
| Body | Stainless steel(Su303), passivated |
| Inner contact | Beryllium-Copper, gold-plated |
| Insulator | PEI |
| Connector 2 | SMP female connector |
| Body | Stainless steel(Su303), passivated |
| Inner contact | Beryllium-Copper, gold-plated |
| Insulator | PEI |
| Cable | RL3507 |
Additional information
| Frequency | 12G |
|---|---|

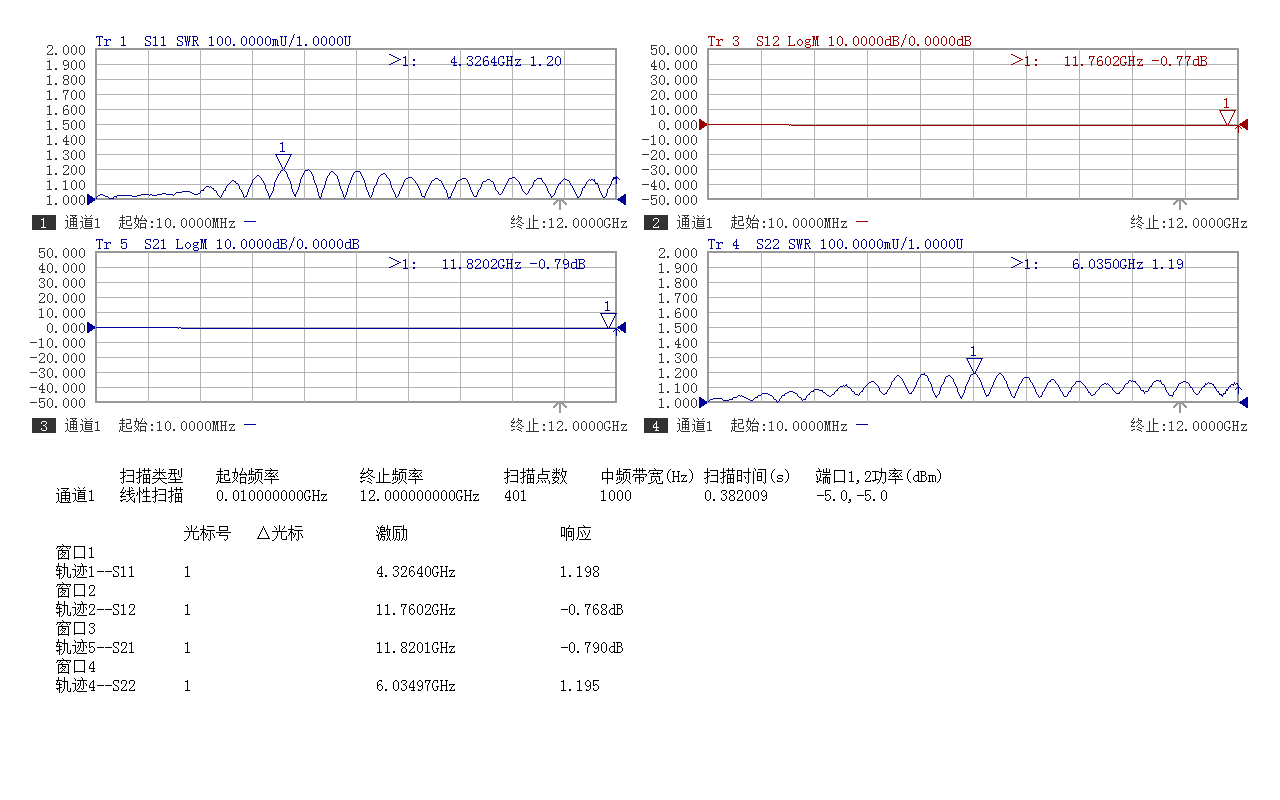

| VSWR | 1.20 |
| Material | Stainless steel |
